VSCode connects to a remote server via SSH

Preface Link to Preface

VSCode is an excellent code editor, and using it to connect to a server is also a great choice. This article will introduce how to connect to a remote server using VSCode and enable password-free login by setting up mutual trust between nodes.

Main text Link to Main text

Install VSCode Plugin Link to Install VSCode Plugin

First, you must have VSCodeinstalled on your computer.

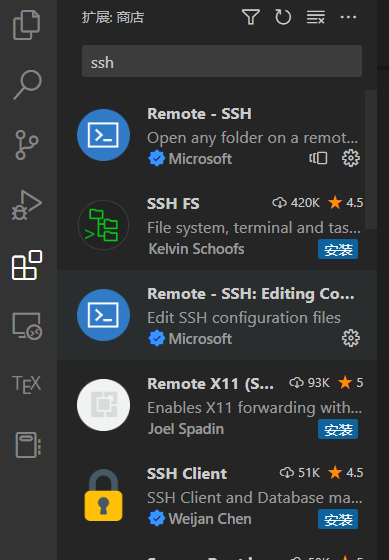

Then, you can download the Remote-SSH plugin from the extensions panel.

After installation, a remote connection icon will appear on the left sidebar.

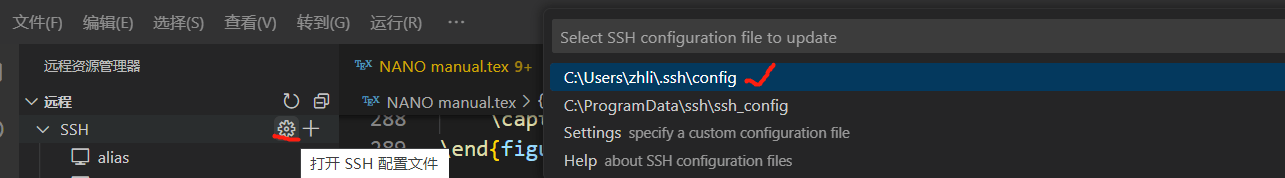

Click on the SSH settings icon to open the config file and configure it as follows:

1
2
3
4

Host Supercomputer_cluster
    HostName 159.226.208.68
    User yihaoxu
    Port 61288

• The name after Host can be anything you choose.
• The value after HostName should be your server’s IP address.
• The value after User should be your username.
• The value after Port should be your server’s port number.

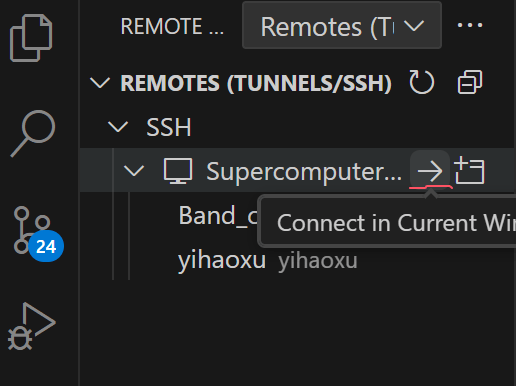

Click the connection arrow to start connecting, then enter your account password to log in to the server.

Set up password-free login Link to Set up password-free login

• Run the ssh-keygen -t rsa command on both your local computer and the server, pressing Enter to accept all defaults.

In your local computer’s C:\Users\YourUsername\.ssh directory, two files will be generated: id_rsa (private key) and id_rsa.pub (public key).

• Copy the contents of id_rsa.pub and paste them into the ~/.ssh/authorized_keys file on the server.

After this setup, you can access the server using VSCode without entering a password.
